The Liquid Filling Machine is an ideal packaging solution for accurately filling a wide range of fluid liquids, including water, milk, juice, beverages, edible oil, vinegar, and other liquid products. Featuring a reasonable structure, stable operation, and high filling precision, the machine integrates advanced technology to ensure efficient and hygienic production. Depending on the model and packaging specifications, its capacity can reach 5–30 bottles per minute or up to 2,500–3,000 bottles per hour, making it suitable for both small-scale businesses and commercial production lines.
Designed to meet diverse customer needs, we also offer customized solutions based on your product characteristics, packaging size, and production requirements. Whether you are starting a new packaging business or upgrading an existing production line, we can provide the most suitable packaging solution and professional technical support. Contact us today to learn more about machine specifications, customization options, and the latest factory price.
Types of liquid filling machines for sale
当社は創業約30年を迎え、信頼と実績を誇る会社です。現在、河南トップ包装機有限公司ではシングルヘッド充填機とマルチヘッド充填機を販売しております。このように、液体充填機はノズルによって分類されていることがわかります。一般的に言えば、充填範囲は3〜30ml、30〜300ml、300〜3000ml、10〜100ml、100〜1000ml、50〜500ml、500〜5000ml、1000〜5000mlです。
Single-head liquid filling equipment
This is a very simple and horizontal single nozzle filling machine. It’s also in the name of a quantitative filling machine.
It’s made of a feed pipe, cylinder, outlet, speed regulator, and barometer. The outlet is composed of stainless steel, accurate filing without clogging, and removable for cleaning and maintenance.
Also, it has an emergency switch in order to stop emergencies happen. In addition, it has been controlled by the pneumatic device.
したがって、エアコンプレッサーと連携する必要があります。さらに、液体充填機のノズルは実際の需要に応じて調整できます。液体を入れる容器はご希望に応じて異なります。瓶、缶、袋などお好みのもので大丈夫です。ただし、容器は手で持つ必要があります。
Parameters of single-nozzle horizontal filling machine
| 充填精度 | ≤±0.5% |
| 充填速度 | 1～25本/分 |
| 電源 | 220V50Hz |
| 必要空気圧 | 0.4～0.9MPa |
| 必要風量 | ≥0.1m3/min(空圧機械はお客様にてご用意ください) |
| 電圧 | エアコンプレッサーは220vの電圧で使用されます |

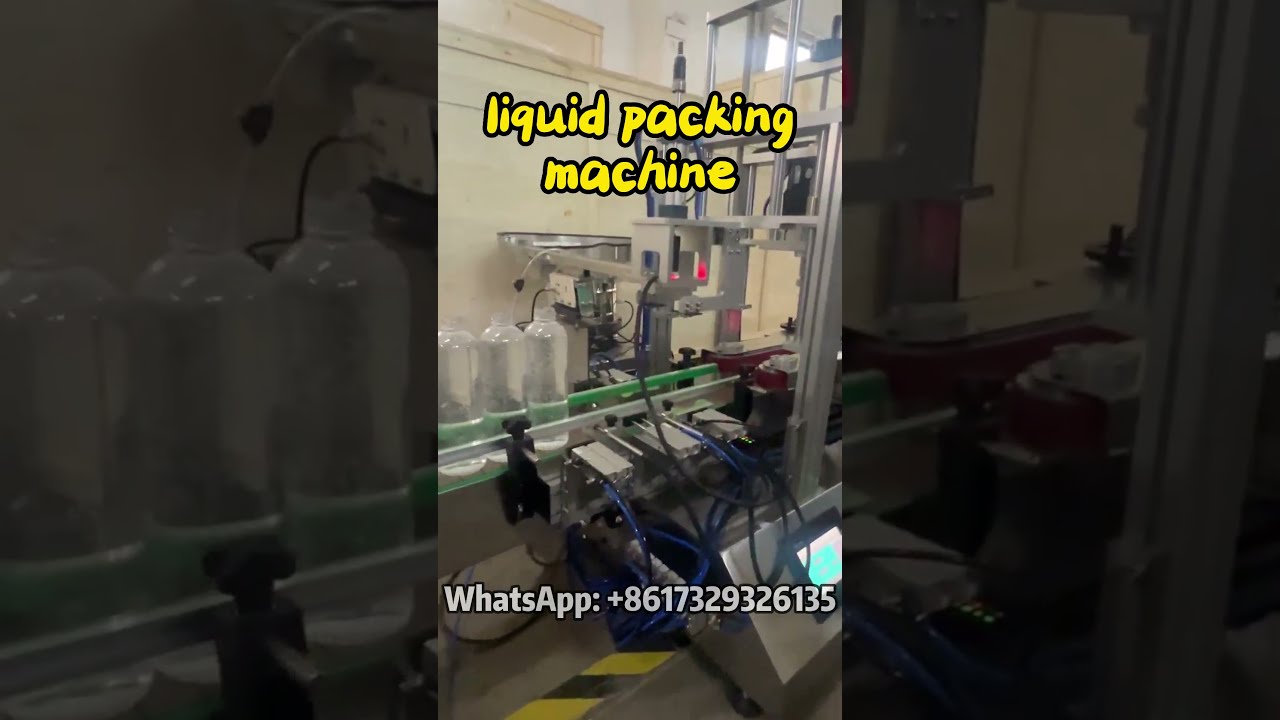

Multi-head liquid bottle filling machine
Multi-head filling machine can achieve the goal of filling automatically. Of course, the filling nozzles are different along with the requirements of the production. Generally, it works during the entire production line.
The line consists of an unscrambler, a filling machine, a capping machine, and a labeling machine. Without a doubt, it forms a fully automatic packing machine.
さらにサーボモーターを搭載し、正確で確実な充填作業を実現します。電動高さ調整システムにより、ボトルの高さを自動的に調整できます。その容器は瓶詰めが一般的です。
Parameters of multi-head filling machine
| 電圧 | AC220V 50-60Hz |
| 力 | 400W |
| 生産速度 | 1000～1200 ボトル/時間 |
| 空気圧 | 0.6～0.8mpa |
| 充填精度 | ±1% |
| コンベヤ長さ | 2m |
| 必要なエアコンプレッサー | ≥7.5Kw 200L |
| 機械サイズ | 2000×1050×1950mm |
Features of liquid filling machine
- 合理的なデザイン、簡単な操作、高精度の充填。
- 接触部分は腐食、錆、酸、アルカリに強い304ステンレス鋼材を採用しています。操作とメンテナンスが簡単かつ安全です。
- コンパクトな構造、美しい外観、安定した信頼性の高い性能。
- 適応性が高く、操作が簡単で、メンテナンスも簡単です。
- 良く知られたコンポーネントを使用しているため、マシンの品質は高くなっています。
- シングルノズル充填機は、安全で信頼性の高い作業、長寿命、簡単なメンテナンス、簡単な操作と使用、高効率、優れた性能、軽量構造、幅広い用途という利点があります。
- マルチヘッド充填機は定量ピストン、機械式、電気式、空気圧式を 1 つとして採用し、サーボモーターを使用して充填中の液だれを実現しません。
- カスタマイズサービスがサポートされています。
What are the applications of filling machines?
It’s suitable for low-viscosity fluid and liquid filling. For example water, milk, vinegar, edible oil, fruit juice, engine oil, milk tea, beverages, shampoo, hand wash, shower gel, honey, eye drops, all kinds of oral liquid, reagents, etc. You have options to select the most suitable filling machine.
However, every type of selection has to satisfy your business. Of course, if you have any doubts, directly message us.
